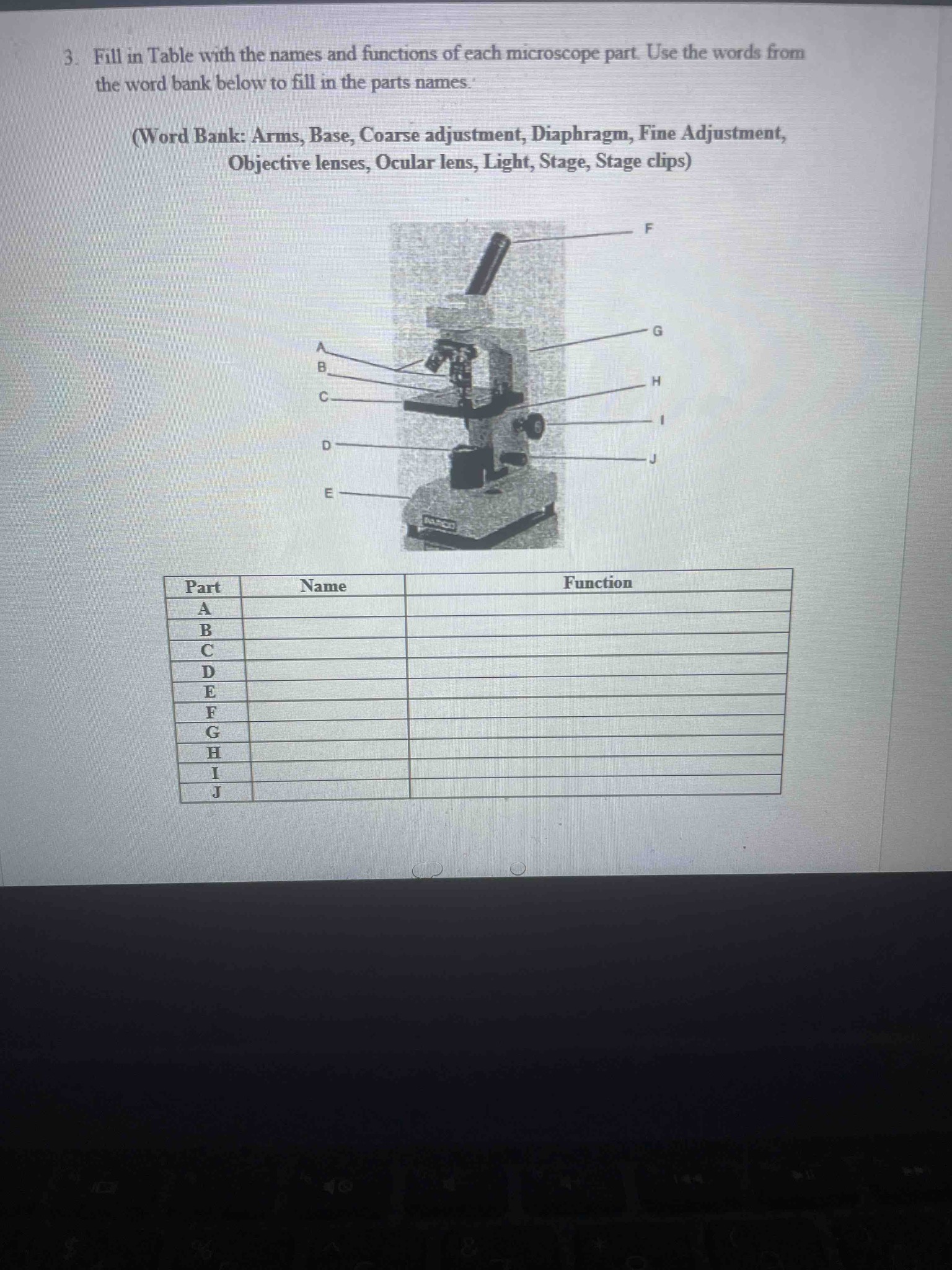

3. Fill in Table with the names and functions of each microscope part. Use the words from the word bank below to fill in the parts names. (Word Bank: Arms, Base, Coarse adjustment, Diaphragm, Fine Adjustment, Objective lenses, Ocular lens, Light, Stage, Stage clips)

3. Fill in Table with the names and functions of each microscope part. Use the words from the word bank below to fill in the parts names. (Word Bank: Arms, Base, Coarse adjustment, Diaphragm, Fine Adjustment, Objective lenses, Ocular lens, Light, Stage, Stage clips)

Answer

Based on the anatomical structure of the compound microscope shown in the image, here are the labels and their functions: A: Objective lenses - Used to magnify the specimen at different levels (typically 4x, 10x, 40x). B: Stage clips - Metal clips that hold the slide firmly in place on the stage. C: Stage - The flat platform where the slide is placed for observation. D: Light - The illuminator that provides the light source to see the specimen. E: Base - The bottom support of the microscope that keeps it stable. F: Ocular lens - The eyepiece that the user looks through; it usually has a 10x magnification. G: Arms - The sturdy part used to carry the microscope and connect the base to the head. H: Diaphragm - Located under the stage, it controls the amount of light reaching the specimen. I: Coarse adjustment - The larger knob used to move the stage up and down for initial focusing under low power. J: Fine adjustment - The smaller knob used for precise, sharp focusing under higher power objectives.
